How Many Pallets Fit in a 40’ Reefer Container? Capacity Chart + Practical Loading Guide

Quick Answer: How Many Pallets Fit in a 40’ Reefer?

‍

Most shipments planned on a single, unstacked layer land in these ranges:

‍

‍

Reality check: The count can drop if your load needs extra clearance for airflow, door-end space, or if your cartons create pallet overhang.

Key Takeaways

‍

• Planning counts assume single-layer + no overhang; adjust for clearance and packaging.
• Planning rule: Start with the standard count, then subtract for packaging and required clearance.
• Confirm before booking: pallet size, single vs stacked, clearance needs, and equipment limits.

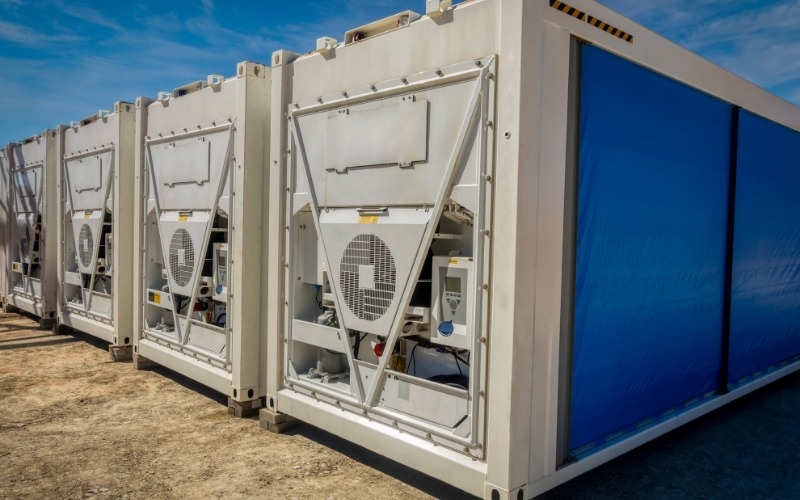

What Changes How Many Pallets You Can Load in a 40’ Reefer

‍

Treat pallet count as an execution number, not a spec number. The final count shifts based on your loaded unit dimensions and the reefer clearances you need to follow.

‍

Pallet Footprint and Orientation

‍

The pallet base size decides the geometry of the load. Even with the same container, a pallet that fits cleanly in two rows in one orientation might waste space in another.

‍

Planning impact: Treat orientation as a layout decision, not a last-minute loading choice. A small rotation change can create a gap that costs you a full pallet across the length.

‍

Overhang, Packaging, and Palletized Unit Size

‍

The pallet footprint is only the start. Overhang from cartons, wrap bulge, corner boards, or uneven stacking can make a “fits on paper” pallet behave like a larger unit.

‍

Planning impact: Plan using the true outer dimensions of the loaded unit, not the wooden pallet size. If the unit overhangs, assume the count drops.

‍

Reefer Internal Geometry (Usable Space, Not External Length)

‍

A 40’ reefer doesn’t give you the same usable internal space as a dry container. Insulation, internal linings, and zones around the refrigeration equipment reduce the practical loading envelope.

‍

Planning impact: Use reefer-specific internal space assumptions when you plan, especially if your pallet sizes are already tight on width.

‍

Airflow Clearance Expectations

‍

Reefers need air circulation to maintain temperature stability. Tight packing that blocks airflow can cause temperature issues or fail internal SOP checks for certain commodities.

‍

Planning impact: Build in clearance expectations early. If your cargo needs stricter airflow, treat that clearance like “non-negotiable space” that reduces the usable pallet count.

‍

Door-End and Loading Practicalities

‍

The last few pallets near the doors are where plans commonly fail. Door closure clearance, load securing space, and the physical ability to position the final pallet cleanly can reduce the achievable count.

‍

Planning impact: Leave a buffer for the door-end zone instead of pushing the layout to a perfect theoretical maximum.

‍

Weight / Payload Reality Check (High-Level)

‍

Sometimes you hit weight limits before you hit floor-space limits—especially for dense cargo. Even when the total weight is within limits, uneven distribution can create handling and safety issues.

‍

Planning impact: Check weight per pallet and distribution early. If pallets are heavy, plan for a weight-limited load rather than trying to chase the maximum floor count.

‍

If you lock these variables upfront, the “pallet count” stops being a guess and becomes a load plan you can execute. Next, we’ll map that plan into practical loading patterns so you can see how the pallets typically sit inside a 40’ reefer.

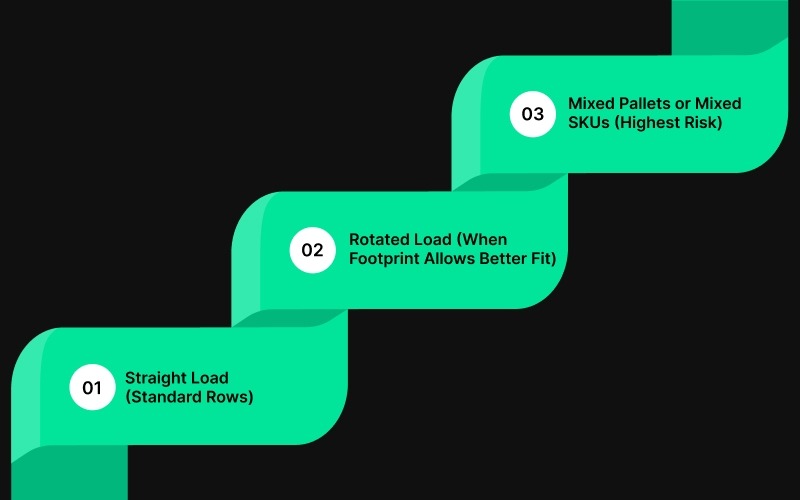

Pallet Loading Patterns That Work for Reefer Planning

‍

Most teams stick to a few repeatable patterns because they’re easier to communicate, faster to load, and less prone to “it fit in the plan but not at the door” surprises.

‍

Straight Load (Standard Rows)

‍

This is the default pattern when the goal is predictable loading and faster execution. Pallets are placed in consistent rows with minimal decision-making during stuffing, which reduces misalignment and rework.

‍

Caution: Confirm the last row at the door end still allows proper closure and securing.

‍

Turned / Rotated Load (When Footprint Allows Better Fit)

‍

Rotation is used when turning the pallet orientation improves how rows “tessellate” inside the container, especially when you’re trying to improve fit without forcing overhang. It can also help when your palletized units have uneven dimensions that waste space in a straight load.

‍

Before you commit, validate two things: the outer dimensions of the wrapped unit (not just the pallet) and whether the door-end row still loads cleanly.

‍

Mixed Pallets or Mixed SKUs (Highest Risk)

‍

Mixed loads are common in real trade, but they’re the easiest way to lose usable capacity. Different pallet heights, carton bulges, and handling priorities create buffer zones that don’t exist in uniform loads.

‍

In practice, mixed SKUs usually require planned slack so the team can finish the load without reshuffling.

‍

A safe planning posture is to assume a buffer and treat the “maximum” pallet count as an upper bound, not a promise.

Once the arrangement is chosen, planning still needs a quick calculation so the booking and stuffing plan match.

A Simple Pallet Capacity Calculator for Your 40’ Reefer Shipment

‍

This turns “how many pallets fit” into a repeatable planning flow that ops, warehouse, and logistics can run the same way every time.

‍

Step 1: Confirm Pallet Type and Loaded Unit Dimensions

‍

Start with two inputs only:

‍

• Pallet type/size (US / Euro / Industrial)
• Loaded unit footprint (outer length × width of the wrapped palletized unit)

‍

Reminder: plan with the outermost dimensions (wrap bulge, corner boards, carton edges). If the load overhangs the pallet, treat the unit size as the carton footprint, not the pallet footprint.

‍

Step 2: Confirm Container Variant

‍

Not every “40’ reefer” plans the same way. Confirm which one you’re actually booking:

‍

• Standard 40’ reefer
• 40’ high-cube reefer
• Pallet-wide reefer (where applicable)

‍

If your lane offers pallet-wide equipment, confirm it explicitly at booking.

‍

Why this matters: the variant changes the usable layout choices (and therefore the realistic pallet count), even if the shipment description sounds similar.

‍

Step 3: Choose a Pattern and Apply the Reefer Buffers

‍

Pick the loading pattern you intend to execute (straight / turned / mixed), then apply two reefer-specific buffers:

‍

• Airflow clearance buffer (leave space required by your shipper/warehouse SOP)
• Door-end practicality buffer (assume the “last row” needs extra tolerance for closure/securing)

‍

Keep this simple: plan for a buffer upfront instead of trying to “recover” space during stuffing.

‍

Step 4: Sanity Check Weight and Distribution

‍

Before finalising the count, check:

‍

• Estimated gross shipment weight vs what the booked container can legally carry
• Where the weight sits (avoid heavy concentration at one end)

‍

Floor space can say “yes” while payload reality says “no,” especially for dense cargo.

‍

Step 5: Before You Lock the Booking, Confirm These 6 Items

‍

• Pallet type + loaded unit size (outer dimensions)
• Target pallet count + chosen loading pattern
• Airflow/clearance requirement (shipper/warehouse SOP)
• Temperature setpoint implications (confirm any special handling requirements)
• Weight estimate + distribution plan
• Stuffing location constraints (door clearance, ramps, working space)

‍

Once these five checks are locked, your “pallet count” stops being a guess and becomes a plan the warehouse can execute without last-minute surprises.

‍

‍

Where 40’ Reefer Pallet Plans Usually Break And Why Rework Happens Late

‍

Most pallet plans don’t fail at the “math” stage. They fail because a detail changes late, or because the final load plan isn’t owned end-to-end.

‍

• “Count assumed from a blog” → stuffing-day mismatch
  The number looked right on paper, but the pallet type, unit dimensions, or container variant isn’t the same as the real shipment.
• Packaging changes late → overhang/height issues
  A new carton, extra corner boards, thicker wrap, or a different pallet base makes the loaded unit larger than what the plan assumed.
• Mixed pallet sizes or mixed SKUs introduced → the pattern collapses
  The arrangement that worked for one footprint stops working when a second footprint gets added, so usable space drops fast.
• Door-end surprises → last pallets don’t seat / doors don’t close cleanly
  The final row near the doors is where “fits on paper” often fails due to clearance, securing needs, or uneven unit dimensions.
• Weight/payload not checked early → last-minute cut in pallets
  Floor space may allow the count, but payload or weight distribution forces a reduction after the load is already being built.
• Too many handoffs → no single “final version” of the load plan
  Ops, warehouse, forwarder, and transporter work off different assumptions, and the mismatch surfaces only when time is tight.

‍

This is why teams treat pallet planning and execution as one workflow, not two separate tasks.

How Pazago Supports Reefer Shipment Execution: Planning → Booking → Movement

‍

‍

Pazago is built for cross-border shipment execution, helping trade and logistics teams keep the shipment plan, milestones, and documentation moving in sync across shippers, forwarders, CHAs, transporters, and internal stakeholders.

‍

For reefer moves, that matters because small slips can quickly turn into rework near cut-offs.

‍

In practice, reefer execution usually fails in three places: plan versions, milestone ownership, and last-minute document fixes, and that’s where Pazago focuses its support.

‍

One Shipment Plan, One Source of Truth

‍

Reefer shipments tend to go off-track when the load plan, booking details, and last-mile coordination live in different places. One person updates a sheet, another confirms on WhatsApp, and the forwarder works off a third version.

Pazago supports shared shipment planning and stakeholder alignment around the same milestones and the same plan, so booking and stuffing don’t get derailed by version confusion.

‍

Milestone-Led Execution That Protects Cut-Offs

‍

With reefers, timing pressure builds fast around pickup readiness, gate-in windows, and rollovers. When updates surface late, teams end up reacting instead of recovering.

‍

Pazago supports milestone tracking and coordinated execution so exceptions show up early enough to act, align stakeholders, and protect cut-offs with fewer last-minute reschedules.

‍

Cleaner Document Collaboration When Timing Is Tight

‍

Many reefer delays don’t come from a big failure. They come from small mismatches that surface close to dispatch, sailing, or release party details, cargo description, routing instructions, and version drift.

‍

Pazago supports structured document handling and collaboration loops tied to the shipment, so checks happen in time, corrections don’t stall movement, and amendment cycles are reduced.

‍

If you’re running reefers across multiple lanes and teams, talk to Pazago to map your current workflow and tighten the plan-to-execution loop for your shipments.

Conclusion

‍

Pallet capacity in a 40’ reefer is always a planning range, shaped first by your pallet footprint and then by reefer-specific constraints that reduce “paper capacity” in real loading.

The safest approach is simple: confirm the true loaded unit size (including wrap), choose a loading pattern that fits that footprint, apply reefer buffers for clearance and door-end practicality, and sanity check weight and distribution before booking, so the plan you approve is the plan that actually loads on stuffing day.

‍

‍

FAQs

‍

1) Why do different sites show different pallet counts for the same 40’ reefer?

Because assumptions differ: pallet standard, loaded unit footprint (incl. wrap/bulge), clearance buffers, and container variant.

‍

2) Fastest way to estimate capacity if there’s a slight overhang?

Measure the loaded unit footprint at the widest point and plan off that, then keep a small buffer vs a no-overhang plan.

‍

3) Does a 40’ high-cube reefer always fit more pallets?

No. High-cube adds height; pallet count is usually limited by floor footprint + clearance practice, not roof height.

‍

4) Most common “last pallet” problem in reefer loading?

Door-end reality: clearance + minor pattern drift + wrap bulge makes the final row not seat cleanly.

‍

5) What should ops confirm before booking a reefer?

Loaded pallet footprint, intended arrangement, clearance practice, weight estimate, door-end practicality, and who signs off on the final load plan.

‍
